Steps to Fuel your CNG vehicle

IMPORTANT: Before starting the fueling process, locate the safety emergency shutdown locations at the north and south sides of the fueling site.

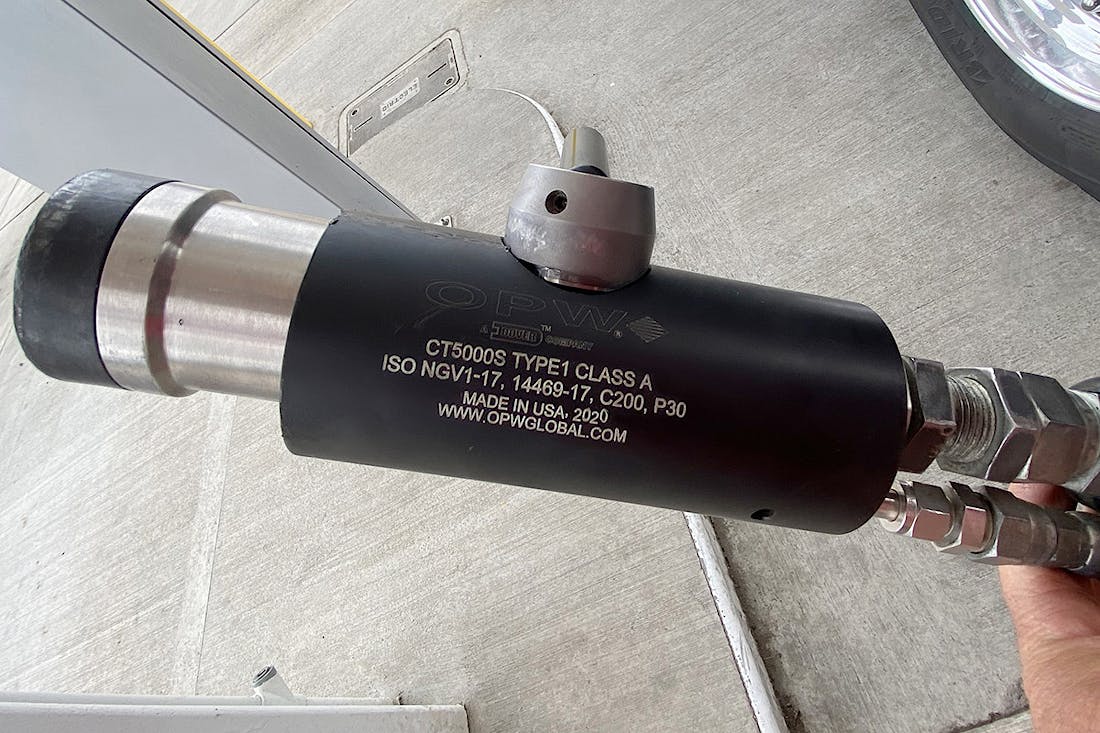

RCF Fueling Instructions STEP1 1200x800


Know the nozzle size for your vehicle. If you have a CT1000 series nozzle, you want Hose 1. If you have a CT5000 series nozzle, you want Hose 2. Park your vehicle with the fill station close to the correct hose.
RCF Fueling Instructions STEP2 1200x800


Remove the dust cap from your vehicle. Inspect the O-ring inside the tip of your filler connection and wipe away any dust. If the inside O-ring fitting is damaged, DO NOT fuel your vehicle.
RCF Fueling Instructions STEP3 1200x800


Connect the fill nozzle to your vehicle.
RCF Fueling Instructions STEP4 1200x800


To lock the nozzle onto your vehicle, start with the arrows facing away from each other. Then rotate clockwise until both arrows point toward your vehicle. You should hear a short flow of gas.
RCF Fueling Instructions STEP5 1200x800


Insert your fuel card or major credit card into the cardlock and follow the prompts to select the correct hose and approve fueling.

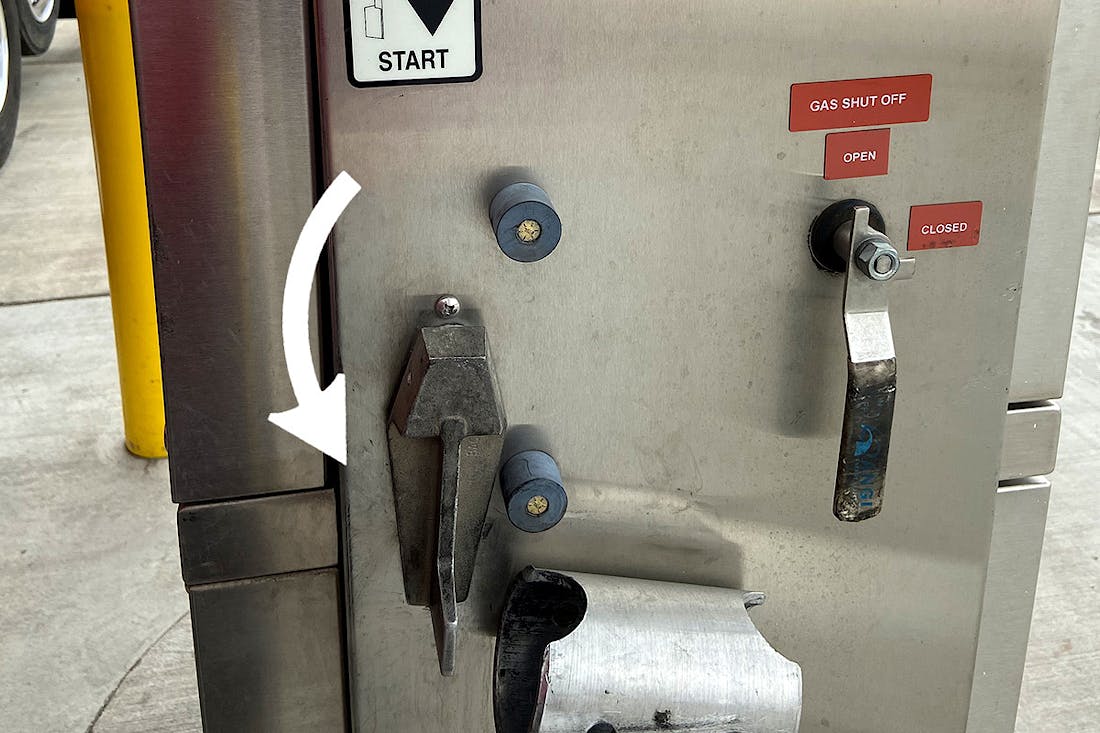

RCF Fueling Instructions STEP6 1200x800


Move the activation lever DOWN to the “on” position. Fueling will begin and end automatically. You can also move the activation lever up to the “stop” position to stop fueling at any time.
RCF Fueling Instructions STEP7 1200x800


When fueling is complete, rotate the activation lever UP to the “stop” position.
RCF Fueling Instructions STEP8 1200x800


Rotate the attachment lever on the hose until the arrows face away from each other. You’ll hear a slight pressure release. Replace the nozzle to its storage location.
RCF Fueling Instructions STEP9 1200x800


Replace the dust cap on your vehicle and close the access door.

See these Steps in Action

The Rogue Valley Clean Cities Coalition, a nonprofit organization dedicated to enhancing the livability of the Rogue Valley, created a step-by-step video tutorial on how to safely refuel a CNG vehicle.

Watch the video here
